Remote Radiators

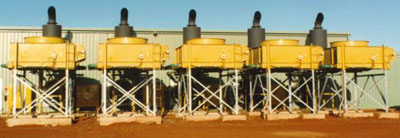

Horizontal Series

Horizontal Remote Radiators are suited to a wide variety of applications. Using a modular design method ensures flexibility for different heat transfer surfaces such as water and oil.

Cooler performance is optimized by the use of ‘draw-through' fans - This maximises fan efficiencies and air distribution across the heat transfer matrix.

The Horizontal Series offers extended service life, low noise levels, fan power levels, and the modular construction provides for easy maintenance and service activities.

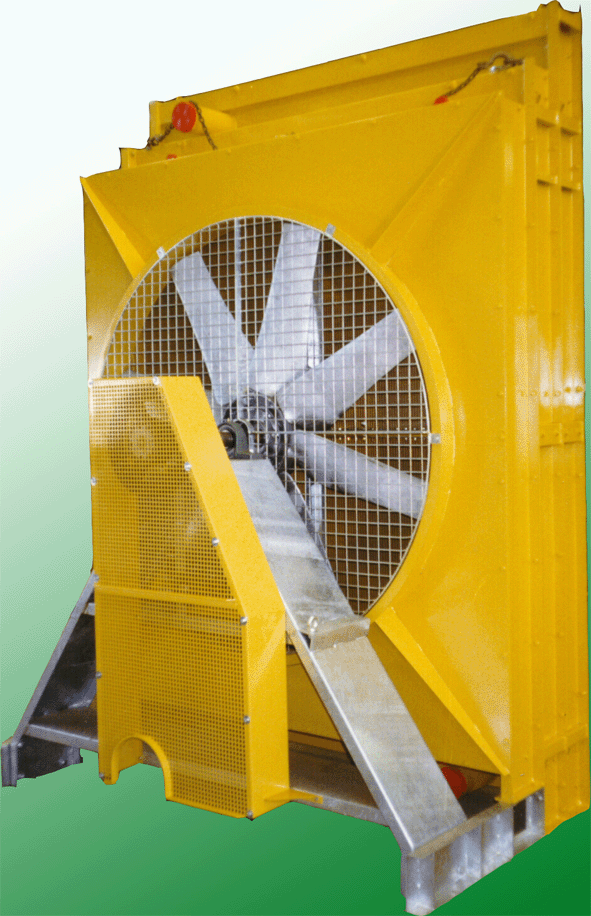

Vertical Series

The Vertical Series represents a range of cooling units able to incorporate heat transfer surfaces suitable for water, oil, compressed air and process fluids.

The 'blow through' arrangement uses a duct mounted fan providing which provides scope to cater for additional air side resistance, as encountered in canopies, plant rooms and noise attenuated installations.

This product series is of heavy duty construction and provides inherent flexibility in installation, whether by direct mounting to the engine skid, wall-mounted, or alternatively, in a free standing situation. The modular construction allows ready access for ease of servicing.

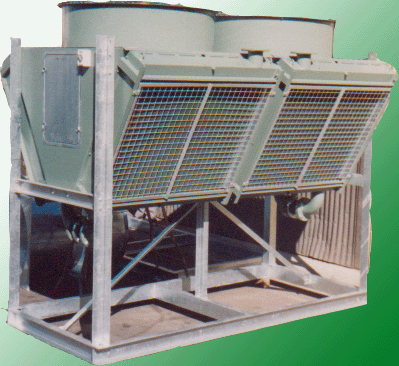

Vee Series

The Vee series radiator concept is specifically developed to cater for installations where footprint (space) is at a premium. By arranging the heat transfer sections in a Vee configuration, the installed thermal capacity is maximized, while vertical air discharge minimizes the potential for hot air recirculation and assists in channeling peak noise levels in what is generally the most disable direction - upwards!

The Vee series design is a example of CBM's innovation, flexibility and capability to deliver heat transfer solutions.
